Construction |
100% A514 T-1 STEEL
|
|
Decking |
Douglas fir (3") |
Apitong (3")
|
Gooseneck |
Mechanical Detachable 21’-6”' Big Neck
Mechanical Detachable 8' STD Short Neck |
Small Neck 9'w/2 pins or11' w/3 pins
Spare Tire Bracket
Tool Box
|
Suspension |
Air Ride
|
|
Deck / Options |
10' Wide Std
28’ Length |
Special Length Optional [30’ Shown]
Pin Joint For Deck Extension
Tool Box
Excavator Tray
Auxiliary Lighting Sockets [Front & Rear Of Deck]
Outriggers (18) Heavy Duty 3"
2’ Front Loading Ramps / Steel / Aluminum
|
Axles |
25,000 lb Oil Bath
|
|
Brakes |
16-1/2 x 7” Drum Brake
|
19.5 Air Disc (Anti-Lock) |
Tires |
275/70 R22.5 Continental
|
11R 22.5
Auto Air Inflation System |
Wheels |
Steel Disc, 10 Hole Stud Pilot
|
Aluminum, 10 Hole Stud Pilot W/Drum Brakes
Aluminum, 10 Hole Hub Pilot W/Disc Brakes |
Lighting |
Sealco Modular Sealed Wiring System
LED Lights
|
|
Paint |
2 Coats Primer & Paint / White STD
|
Your color
|

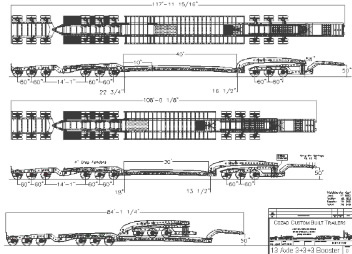

Overall Length |
108' W / 30’ Deck
84’ W / Jeep & Big Neck Stacked On Deck |
|
Back-End Options
|
60” Axle Spreads
|
Drop Fenders [Shown]
Pin Joint For Deck Extension |
Deck Width |
10' Wide Std
|
|
Deck Height |
27" estimate only
|
|
Weight |
70,800 +/-3% Estimate
W / 30’ Deck And Pin Joint |
|
