44 Ton Gen-X II Expando Trailer


44 Ton Gen-X II Stretched Expando

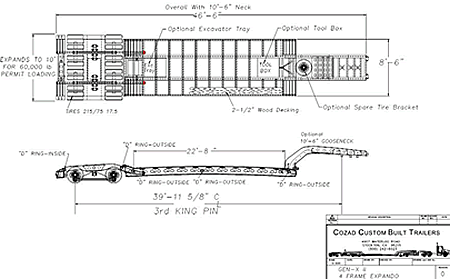

44 Ton Gen-X II Stretched Expando Drawing


FEATURES
  Standard Optional
Construction

100% A514 T-1


Decking

Douglas fir (2.5")

(2.5")  Apitong

Gooseneck(s)

Mechanical Detachable 8' STD

9-8” With 2 Pins

Spare Tire Bracket

Full Screen

Gooseneck fenders

Deck/Options

22'-8" Length STD

8’-6” Wide

Tool Box

Excavator Tray

Auxiliary Lighting Sockets [Front & Rear Of Deck]

Outriggers (12) Heavy Duty 3" wide

2’ Front Loading Ramps / Steel / Aluminu

Back-end/Options

8'6" Wide / Expands to 10' Wide

69” Axle Spread

Scraper Fenders [Front / Rear Axle]

Rear Loading Ramps / 5 – 6’ / Steel / Aluminum

Suspension

Walking Beam


Axles

25,000 lb Oil Bath


Brakes

S Cam drum brakes

Air Disc (Anti-Lock)
Tires

215/75R x 17.5 Continental

Auto Air Inflation System

Wheels

Steel Disc, 8 Hole Hub Pilot

8 hole / Aluminum Hub Pilot

Lighting

Sealco Modular Sealed Wiring System

LED Lights


Paint

2 Coats Primer & Paint / White STD

Your color

Overall Length

44' Estimate With 8’ Gooseneck


Deck Height

27" estimate only


Weight

16,500 +/-3%



  • Measurements, clearance and dimensions are approximate and describe a standard trailer
  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.



____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
