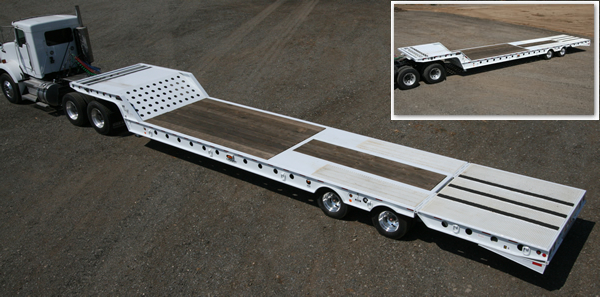

35 Ton Wrentail Trailer

FEATURES

	Standard	Optional

Construction	100% A514 T-1
Decking	Douglas fir [2.5”]	Apitong (2.5")
Deck / Options	37’-8” Lenght STD 8’-6” Wide	Tool Box Auxiliary Lighting Sockets [Front & Rear Of Deck]
Gooseneck(s)	8' Fixed Neck 8’ Loading Platform Top Of Neck	Tool Box[‘s] Warn Electric Winch
Suspension	Air Ride 54” Axle Spreads
Brakes	Air Disc (Anti-Lock)
Tires	235/75R x 17.5 Continental	Auto Air Inflation System
Wheels	Steel Disc, 8 hole Hub Pilot	Aluminum / 8 hole Hub Pilot
Lighting	Sealco Modular Sealed Wiring System LED Lights
Paint	2 Coats Primer & Paint / White STD	Your color
Overall Length	47' -10” With 8’ Gooseneck
Deck Height (Empty)	36”
Hydraulics	Set-Up For Wet Kit On Tractor	Kohler 13 HP Electric / Pull-start Gas Engine Hydraulic System
Weight (Estimated)	13,400 lbs.

Measurements, clearance and dimensions are approximate and describe a standard trailer
Drawing is not to scale.
Weights, if shown, are typical and will vary.
All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
